Under Current Double Barrel XL13 - Current Culture

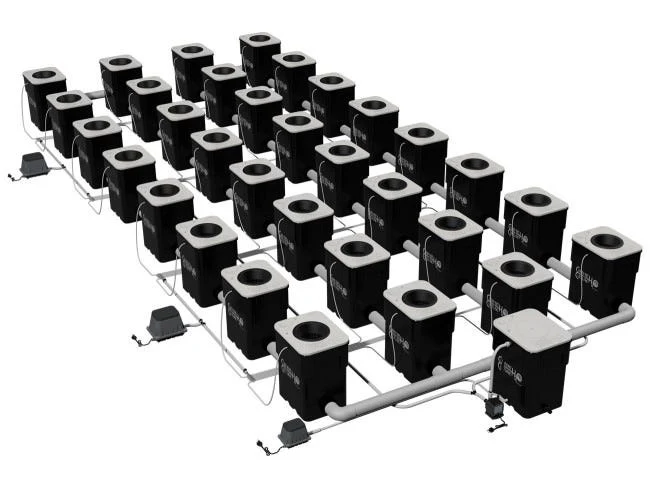

The Under Current ™ Double Barrel XL13
The Under Current™ is the worlds first re-circulating Water Culture Hydroponic System featuring our Patent Pending Sub-Current Culture™ Method. This innovative application circulates literally hundreds of gallons of solution per hour beneath plant roots.
The Under Current™ supercharges the solution with dissolved oxygen, creating a hyper aerobic condition. Constant, 24/7 nutrient circulation ensures that pH and EC are uniform throughout the entire system. An inline Danner Mag-Drive pump provides peripheral negative pressure by thrusting nutrients back to a return module (Epicenter). From this point the solution is drawn from module to subsequent module, evoking perpetual fluid motion.
The Under Current™ Double Barrel XL13 Includes
13 gallon growth modules, 3" manifold, 3” UC Spin Tight Bulkheads, CCH2O 8" custom molded Lids with Port Hole, CCH2O 8" custom molded Net Pots, Danner Mag-Drive™ Return Pump, Air Force Pro ™ Air Pump, 9” Air Diffuser Disc, Medium Round Air Stones, Air Distribution Manifold, Air Hose, In-Line Filter, Adjustable Float Valve with Reservoir Adapter Kit, Drain Valve, Chiller Adapter, Garden Hose Drain Adapter, Cultured Solutions™ VEG A/B and 1-Year Warranty.
Benefits of using the Under Current ™
- Increased Nutrient Efficiency
- 50+ System Configurations
- Expandable Modular Design
- Designed to Accommodate Any H.I.D. Lighting Layout
- Hand Crafted in California
- Commercial Grade
- Low Power Consumption
- pH And EC/TDS Uniform Throughout Entire System
- Conserves Water
- Larger Yields with Fewer Plants
- Less Frequent Nutrient Change Outs
- Easily Adaptable To Dosers, Top-Off Reservoirs & Chillers
- Includes Professional Quality Air & Water Pumps
- Expert Grower Support
| UNDER CURRENT DOUBLE BARREL XL13 | UCDB16LXL13 | UCDB24XL13 | UCDB32XL13 |
| SIZE (INCHES) | 106 x 145 | 106 x 207 | 106 x 269 |
| FULL SYSTEM VOLUME (GALLONS) | 190 | 275 | 365 |
| POWER USAGE (WATTS) | 250 | 365 | 520 |
| AIR PUMP(S) | (1)AFP-40, (1)AFP-80 | (1)AFP-60, (2)AFP-80 | (1) AFP-40, (3) AFP-80 |
| WATER PUMP(S) | MAG1200 | MAG1800 | MAG2400 |
| RECIRCULATION TURNOVER RATE PER HR. | 6.30 | 6.50 | 6.50 |
| RECOMMENDED LIGHTING | 4 X 1000W | 6 X 1000W | 8 X 1000 |
| RECOMMENDED CHILLER* | 1/2 - 1 HP | 1 - 1.5 HP | 1.5 - 2 HP |
| RECOMMENDED RESERVOIR (GALLONS) | 200 | 285 | 375 |
| SHIPPING WEIGHT (LBS.) | 130 | 200 | 280 |
| SHIPPING BOX SIZES | (4)16x18x48 | (5)16x18x48, (1)16x18x36 | (7)16x18x48 |
Original: $5,005.33
-70%$5,005.33
$1,501.60
Description
The Under Current ™ Double Barrel XL13
The Under Current™ is the worlds first re-circulating Water Culture Hydroponic System featuring our Patent Pending Sub-Current Culture™ Method. This innovative application circulates literally hundreds of gallons of solution per hour beneath plant roots.
The Under Current™ supercharges the solution with dissolved oxygen, creating a hyper aerobic condition. Constant, 24/7 nutrient circulation ensures that pH and EC are uniform throughout the entire system. An inline Danner Mag-Drive pump provides peripheral negative pressure by thrusting nutrients back to a return module (Epicenter). From this point the solution is drawn from module to subsequent module, evoking perpetual fluid motion.
The Under Current™ Double Barrel XL13 Includes
13 gallon growth modules, 3" manifold, 3” UC Spin Tight Bulkheads, CCH2O 8" custom molded Lids with Port Hole, CCH2O 8" custom molded Net Pots, Danner Mag-Drive™ Return Pump, Air Force Pro ™ Air Pump, 9” Air Diffuser Disc, Medium Round Air Stones, Air Distribution Manifold, Air Hose, In-Line Filter, Adjustable Float Valve with Reservoir Adapter Kit, Drain Valve, Chiller Adapter, Garden Hose Drain Adapter, Cultured Solutions™ VEG A/B and 1-Year Warranty.
Benefits of using the Under Current ™
- Increased Nutrient Efficiency
- 50+ System Configurations
- Expandable Modular Design
- Designed to Accommodate Any H.I.D. Lighting Layout
- Hand Crafted in California
- Commercial Grade
- Low Power Consumption
- pH And EC/TDS Uniform Throughout Entire System
- Conserves Water
- Larger Yields with Fewer Plants
- Less Frequent Nutrient Change Outs
- Easily Adaptable To Dosers, Top-Off Reservoirs & Chillers
- Includes Professional Quality Air & Water Pumps
- Expert Grower Support
| UNDER CURRENT DOUBLE BARREL XL13 | UCDB16LXL13 | UCDB24XL13 | UCDB32XL13 |
| SIZE (INCHES) | 106 x 145 | 106 x 207 | 106 x 269 |
| FULL SYSTEM VOLUME (GALLONS) | 190 | 275 | 365 |
| POWER USAGE (WATTS) | 250 | 365 | 520 |
| AIR PUMP(S) | (1)AFP-40, (1)AFP-80 | (1)AFP-60, (2)AFP-80 | (1) AFP-40, (3) AFP-80 |
| WATER PUMP(S) | MAG1200 | MAG1800 | MAG2400 |
| RECIRCULATION TURNOVER RATE PER HR. | 6.30 | 6.50 | 6.50 |
| RECOMMENDED LIGHTING | 4 X 1000W | 6 X 1000W | 8 X 1000 |
| RECOMMENDED CHILLER* | 1/2 - 1 HP | 1 - 1.5 HP | 1.5 - 2 HP |
| RECOMMENDED RESERVOIR (GALLONS) | 200 | 285 | 375 |
| SHIPPING WEIGHT (LBS.) | 130 | 200 | 280 |
| SHIPPING BOX SIZES | (4)16x18x48 | (5)16x18x48, (1)16x18x36 | (7)16x18x48 |
